Rail Cabinet Base
Cubis' Rail Cabinet Base (RCB) is an innovative system that provides a secure foundation for electrical trackside assets. The system simplifies the civils, cabling installation and maintenance works whilst providing a safe, inbuilt area to work from.
The system is modular in construction and comprises of six basic components all of which can be delivered flat packed in parts or fully assembled. These can be in a format to build single or multiple cabinet sites and sizes. The systems foundation is constructed from Cubis’ STAKKAbox™ ULTIMA Connect chamber providing easy access and a lightweight system that is adapted on site during installation.

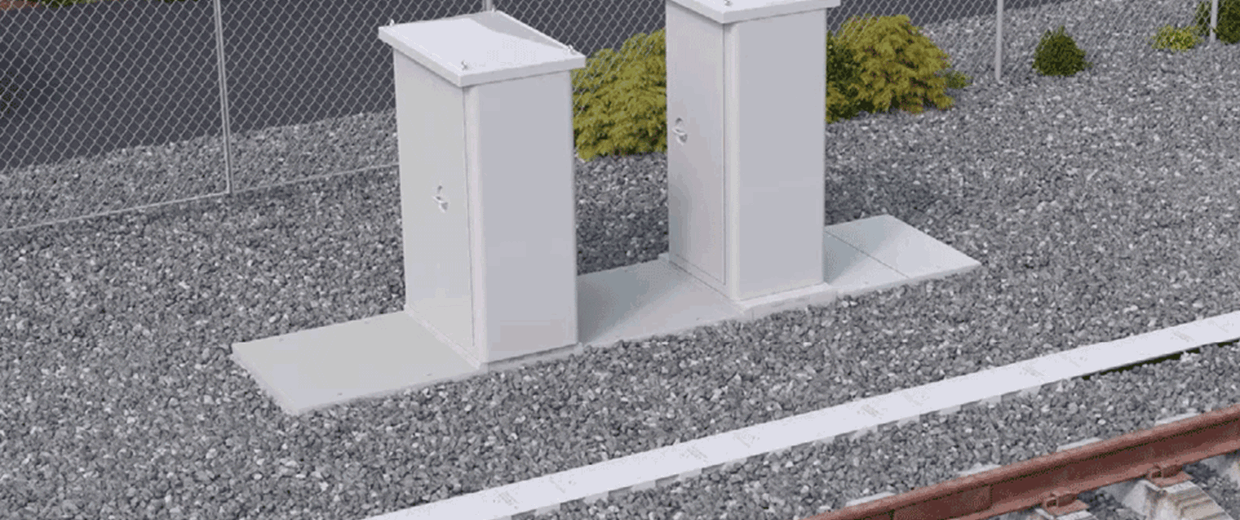

Product Animation
Application Overview
In built areas of safety to stand
No lifting equipment required
Lightweight, safe and easy to assemble
Removes the need for multiple cable troughs
Single or multiple assets can be accommodated
Installation takes half the time of traditional methods
Gland tray removes the risk of vermin entering the cabinet
Large working space underneath providing greater flexibility
Modules can be made for any equipment traditionally founded on a concrete base
System Components
Cubis' Rail Cabinet Base system comprises of the following products:

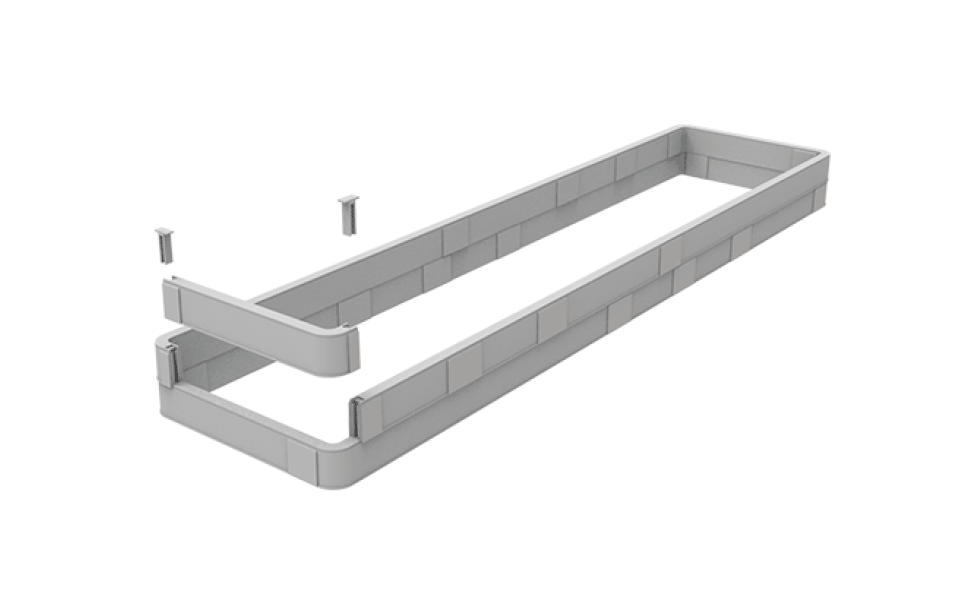

Cabinet Base
The base/foundation is made from the Cubis STAKKAbox™ ULTIMA Connect chamber – a modular system comprised of compression moulded GRP, linked together with GRP pegs to form a solid and stable ring, that can also be linked to trackside drainage.

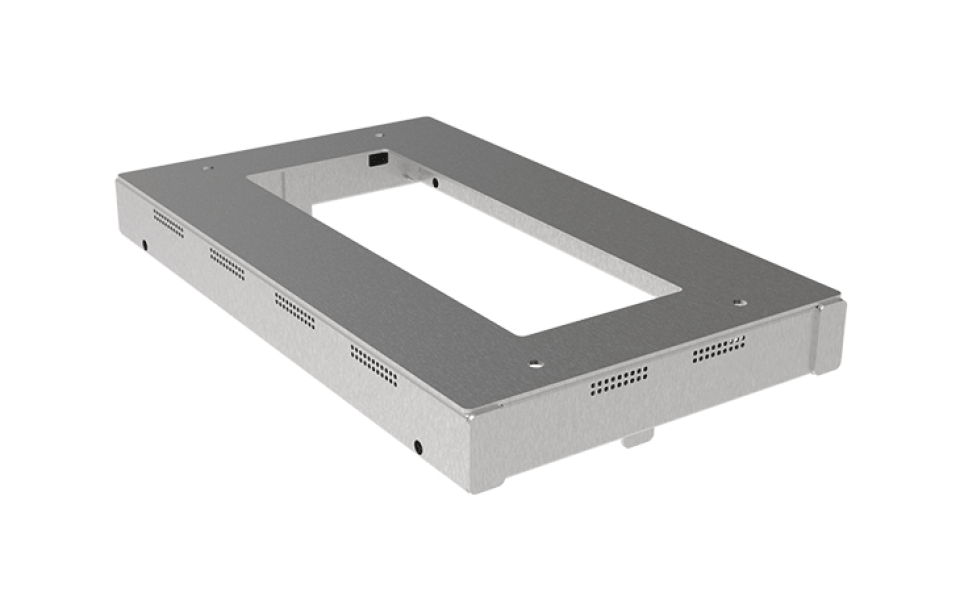

Cabinet Location Modules
Made from powder-coated aluminium, providing a stable and lightweight interface between the base and the cabinet, which is protected from saline oxidation. A Full LOC case module weighs just 20kg.

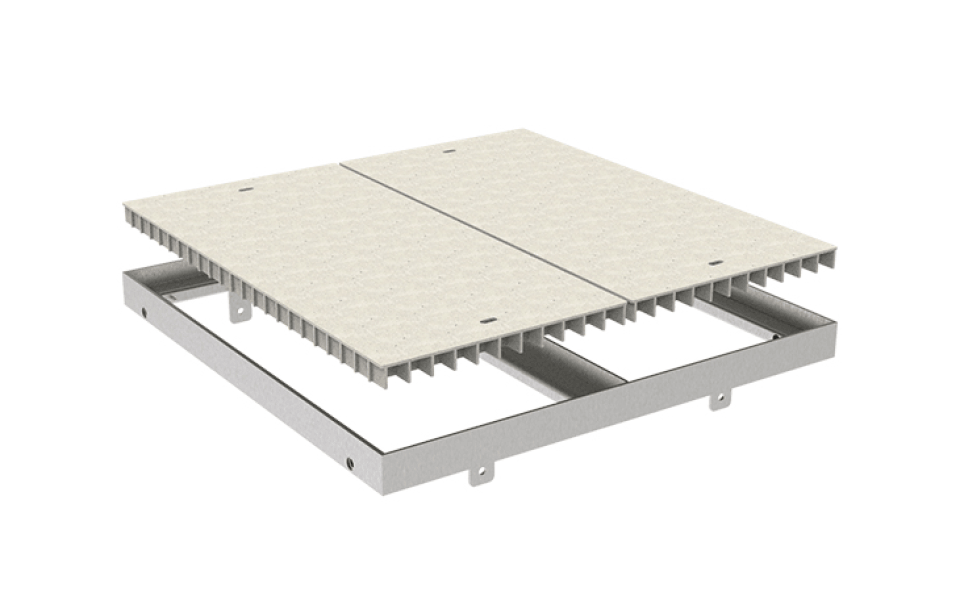

Cover and Frame Modules
Read More

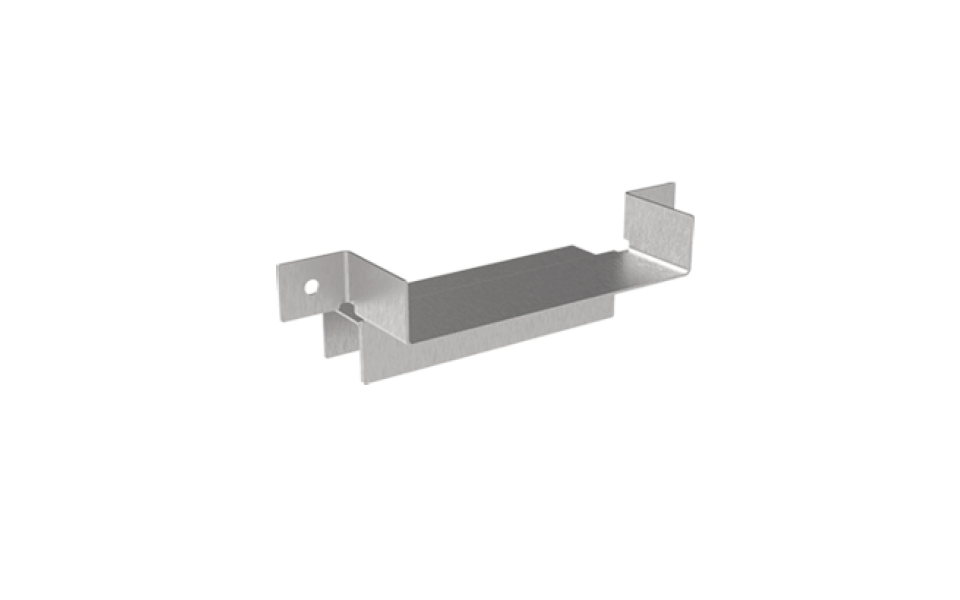

Trough Connector
In place of simply butting a piece of trough to the base of the cabinet, a positive location point has been introduced that can be manufactured to fit any size of cable trough required.

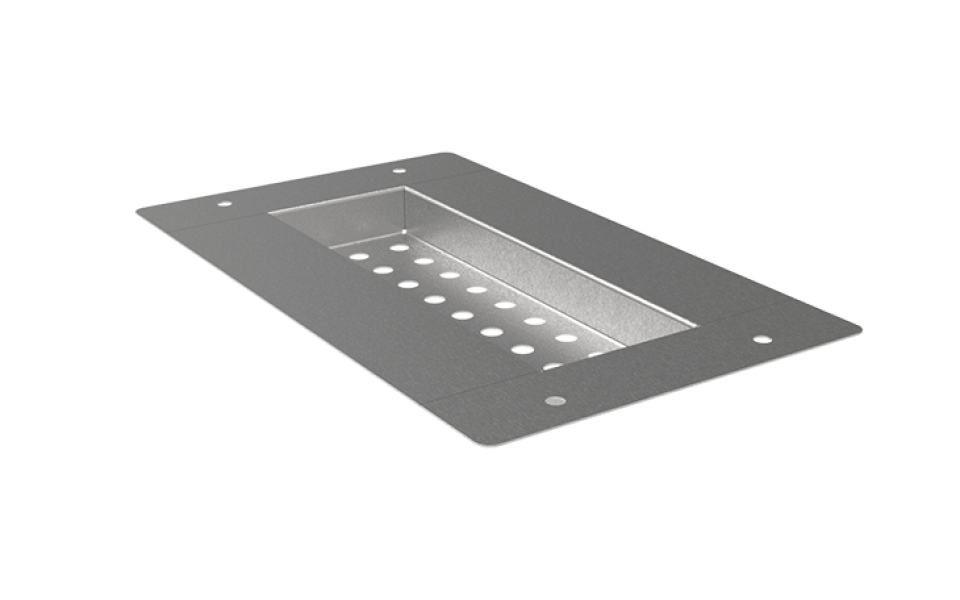

Gland Tray
The gland tray fits on top of the Cabinet Location Module and can be pre-fitted with IP rated glands or grommets as per the application requirements. It also be supplied blank to be cut on-site making it easy to upgrade to Plug and Play.

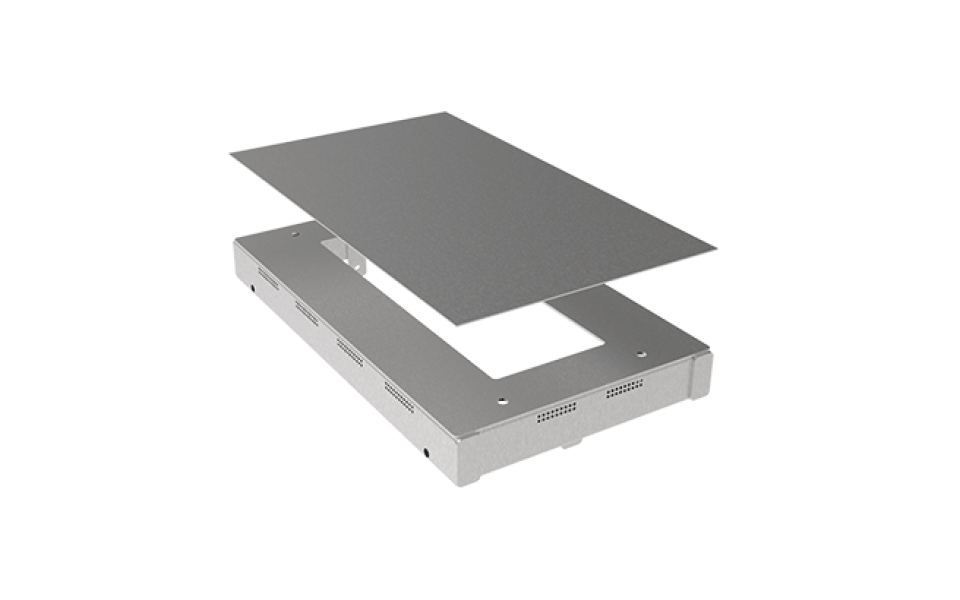

Cover Plate
In place of pallets, ply or bags of cement over the open hole left in a traditional concrete base method whilst waiting for a cabinet to arrive, a purpose-made cover has been introduced, to prevent any open holes.
