Buried Cable Routes
Cubis’ buried cable route system has been designed and developed to offer a modern alternative to traditional methods for burying trackside cabling, offering enhanced security to telecommunications, power and signalling networks.
Application
Buried cable routes offer a secure and environmentally friendly way to bury trackside cabling. The Network Rail approved buried cable route system integrates Cubis’ MULTIduct™ cable protection system, STAKKAbox™ ULTIMA network access chamber and access covers. Cubis’ buried cable route system is quickly installed due to its light weight properties (all parts below 25kg), lack of specialist equipment required and reduced excavation needed. Installation on track upgrades can average 1km in a 20 hour possession.

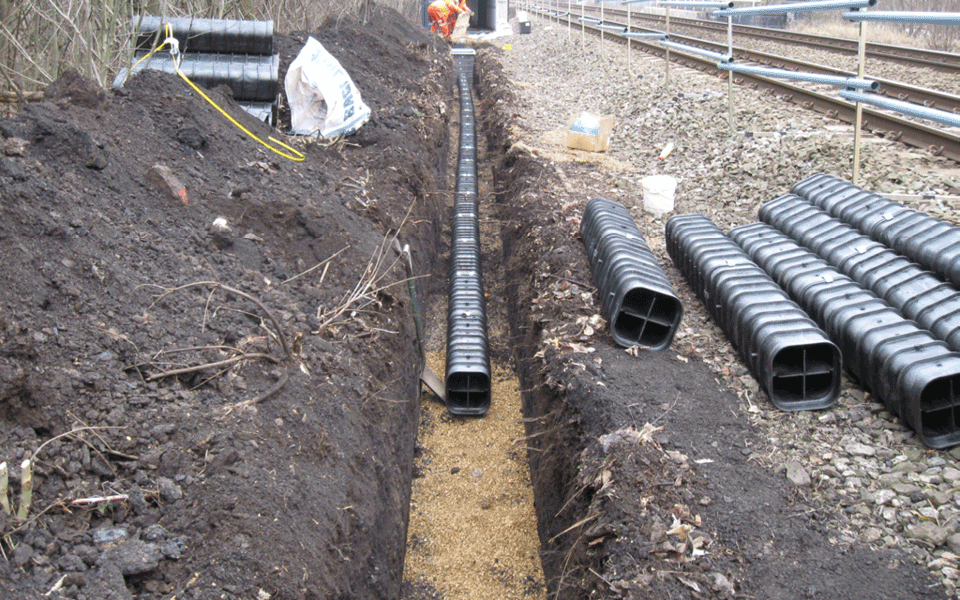

Seamless Integration
Providing a seamless integration between Cubis’ STAKKAbox™ chamber access and MULTIduct™ cable protection products, the buried cable route system delivers reduced track possession times through easier and safer installation, assembly of system and improved build quality.

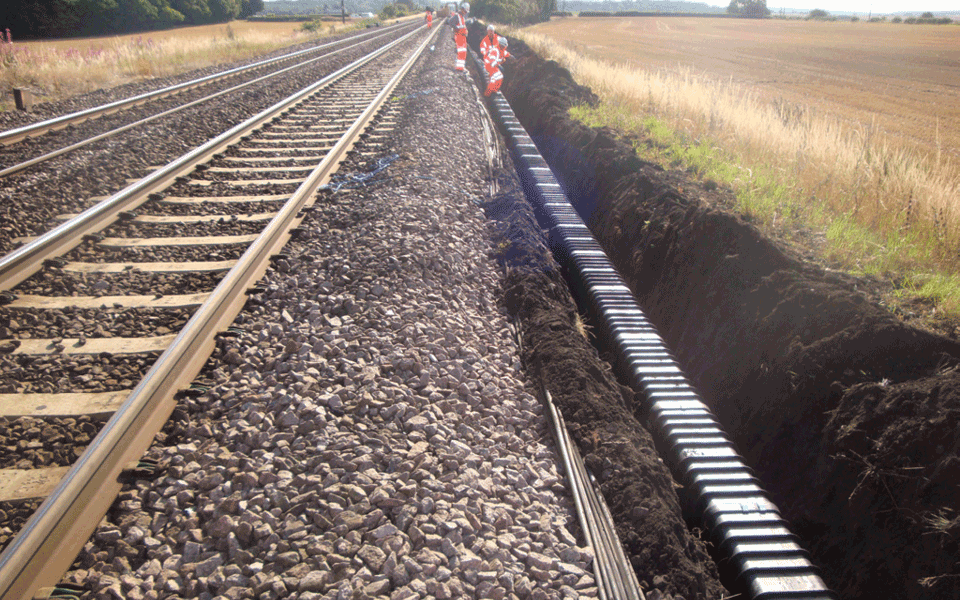

Adjustability On-Site
Fully customisable, flexible and adjustable on-site, Cubis' buried cable route system is compatible with existing ducting and troughing networks.
Application Overview
- Lightweight and safe
- Enhanced security
- No spacers or graded backfill material required
- Fully customisable, flexible and adjustable on-site
- Compatible with existing ducting and troughing networks
- Reduced installation costs
- High crush strength MULTIduct™ units
- Rapid installation, reducing track procession time
- Seamless integration with access chamber system
- Easier to pull cables through than traditional ducting systems
System Components
Cubis' Buried Cable Route system typically comprise of the following products:

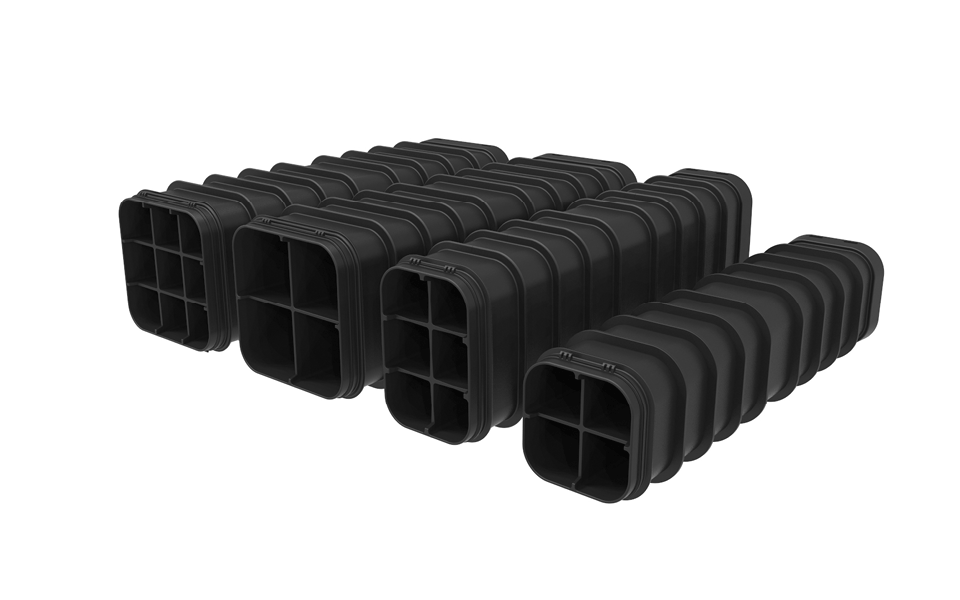

MULTIduct™
Lightweight, strong, flexible duct system for constructing UTX/URX, bridge crossing & linear routes. MULTIduct™ is an innovative, lightweight and structural multiple duct cable protection system offering a modern alternative to traditional cable ducting systems.

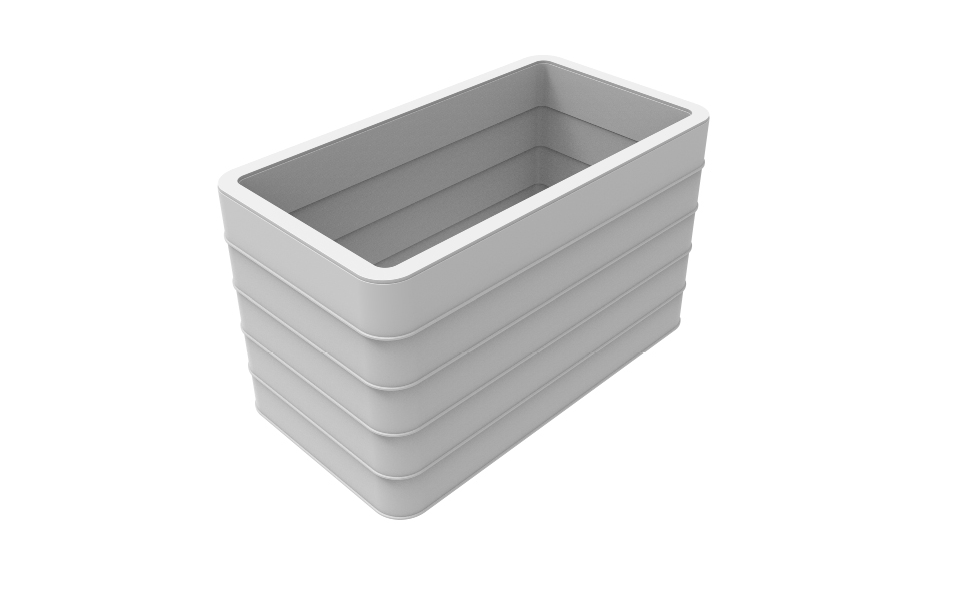

STAKKAbox™ ULTIMA
Offering a flexible access chamber system with no compromise on strength STAKKAbox™ ULTIMA is widely specified. STAKKAbox™ ULTIMA can be used to create virtually any conceivable access chamber clear opening.

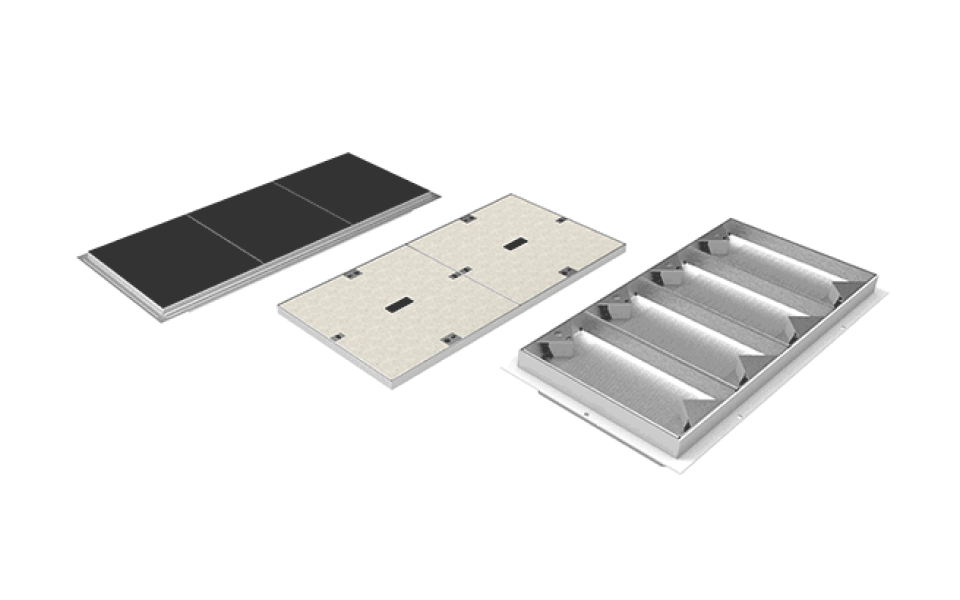

AX-S™ Covers
The Cubis AX-S™ range of covers provide customers with a complete underground network access system.
